$5700

Overview Projects

Did you like this Work? Please Share

Best Quality 20kw DC96V Single Phase Pure Sine Wave Inverter
Best Quality 20kw DC96V Single Phase Pure Sine Wave Inverter
Best Quality 20kw DC96V Single Phase Pure Sine Wave Inverter
Best Quality 20kw DC96V Single Phase Pure Sine Wave Inverter
Best Quality 20kw DC96V Single Phase Pure Sine Wave Inverter
Best Quality 20kw DC96V Single Phase Pure Sine Wave Inverter
Best Quality 20kw DC96V Single Phase Pure Sine Wave Inverter
Best Quality 20kw DC96V Single Phase Pure Sine Wave Inverter
Best Quality 20kw DC96V Single Phase Pure Sine Wave Inverter
Best Quality 20kw DC96V Single Phase Pure Sine Wave Inverter

Product Description

Product Description

Power Frequency Pure Sine Wave Inverter Features:

1.Complete isolation-type inverter technology, noiseless output.

2.Adoption of advanced SPWM technology, pure sine wave output.

3.Dynamic current loop control technology to ensure inverter reliable operation.

4.Wide DC input voltage range.

5.Excellent EMC design.

6.Low output harmonic distortion (THD≤3%).

7.LED indicators for input voltage range, load power range, normal output & failure state.

8.Optional energy saving mode.

9.Extensive protections: reverse polarity, short-circuit, overload, under/over input voltage, over-temperature, and inverter’s inner fault identification protections.

10.Wide working temperature range (industrial level).
11.Continuous operation at full power.
Application
1. For desolate area like mountain, island, pasturing area, etc.
2. For transportation system like beacon light, traffic light, street light, etc.
3. For communication system: unattached operation microwave middle   station, optical
cable maintenance station, etc.
4. For photovoltaic power station, wind-solar power station, park charging station, family
   power house, factory power station, etc.
5. For solar building: has good business future.
6. For the new technology application project.


                                                                  off grid solar power system


                                                              off grid wind turbine power system

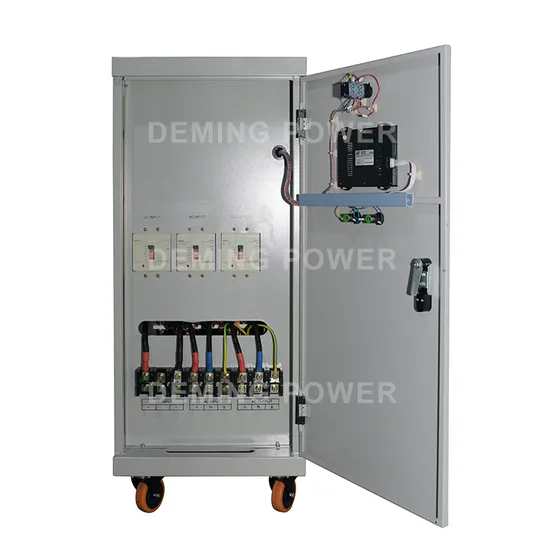

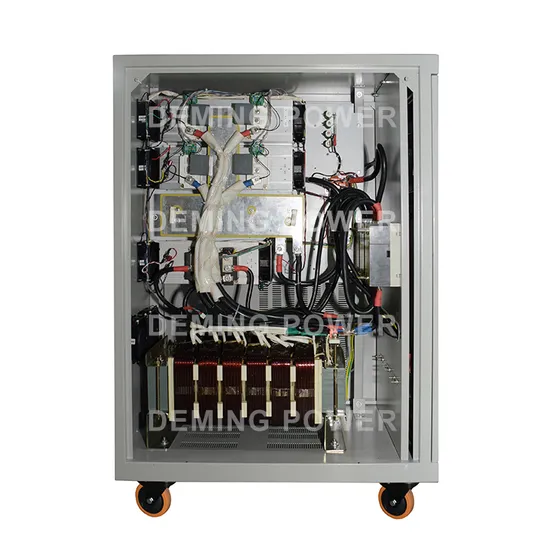

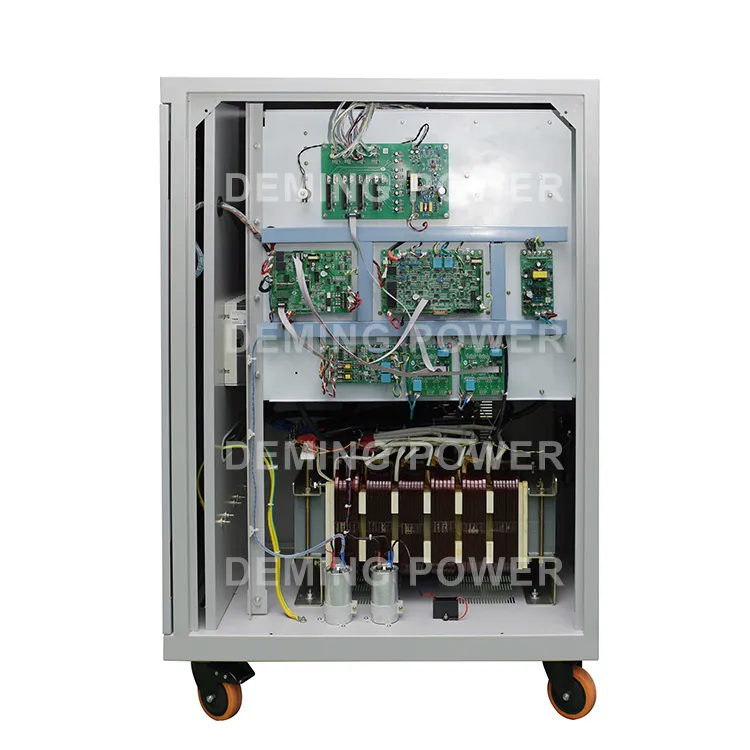

Detailed Photos

Product Parameters



20KW off grid single phase inverter technical parameters

Model NB96-20KDZ
DC input Input rated voltage 96VDC
Input rated current 231.5A
Input DC voltage allowing range 80-124VDC
AC Bypass Allow input voltage range 220 VAC ± 15%
Input rated current 90.9A
Bypass transfer time ≤40ms(4ms optional)
AC output Rated capacity 20KW
Output rated voltage and frequency 220 VAC 50Hz / 60Hz
Output rated current 90.9A
Output voltage accuracy 220 VAC± 2%
Output frequency accuracy 50Hz / 60Hz ± 0.05%
Wave Pure sine wave   (Isolation transformer)
THD. ≤3%(Linear load)
Power factor (PF) 1
Overload capacity 120%,10minutes,200%,10 second
Crest factor (CF) 3:1
Inverter efficiency >90%
Working Environment Dielectric strength 1500VAC,1minute
Noise (1m) ≤50dB
Ambient temperature -10ºC~+50ºC
Humidity 0~90%,No condensation
Altitude <3000m
Higher than 3000m rated power should be reduced
Production function Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Communication interface RS485/WIFI/GPRS/Ethernet (optional)
Ac charger  (optional)
Battery, City grid (generator) priority (optional)
Size 550*1060*1300mm
Weight 250kg

20KW off grid three phase inverter technical parameters

Type NB216-20KSZ
DC input Input rated voltage 216VDC
Input rated current 102.9A
Input DC voltage allowing range 180-280VDC
AC bypass Allow input voltage range 380VAC± 15% VAC
Input rated current 30.4A
Bypass transfer time ≤100ms(4ms optional)
AC output Rated capacity 20KW
Output rated voltage and frequency Three phase 380VAC,50Hz/60HZ
Output rated current 30.4A
Output voltage accuracy 380VAC ± 2%
Output frequency accuracy 50Hz ± 0.05%
Wave Pure sine wave  (Isolation transformer)
THD. ≤3%(Linear load)
Power factor (PF) 1
Overload capacity 120%,10 minutes
Overcurrent capacity 200%,10 seconds
Crest factor (CF) 3:1
Inverter efficiency >92%
Working Environment Dielectric strength 1500VAC,1minute
Noise (1m) ≤50dB
Ambient temperature -10ºC~+50ºC
Humidity 0~90%, No condensation
Altitude <2000m
Higher than 2000m rated power should be reduced
Production function Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Communication interface RS485/WIFI/GPRS/Ethernet (optional)
Ac charger  (optional)
Battery, City grid (generator) priority (optional)
Size 550×1050×1340mm
Weight 220KG

50KW off grid three phase inverter technical parameters

Type NB384-50KSZ
DC input Input rated voltage 384VDC
Input rated current 144.7A
Input DC voltage allowing range 320-480VDC
AC bypass Allow input voltage range 380VAC± 15% VAC
Input rated current 76A
Bypass transfer time ≤100ms(4ms optional)
AC output Output rated power 50KW
Output rated voltage and frequency Three phase 380VAC,50HZ
(Three phase four wire)
Output rated current 76A
Output voltage accuracy 380VAC ± 2%
Output frequency accuracy 50Hz ± 0.05%
Wave Pure sine wave  (Isolation transformer)
THD. ≤3%(Linear load)
Power factor (PF) 1
Overload capacity 120%,10 minutes
Overcurrent capacity Specifications
