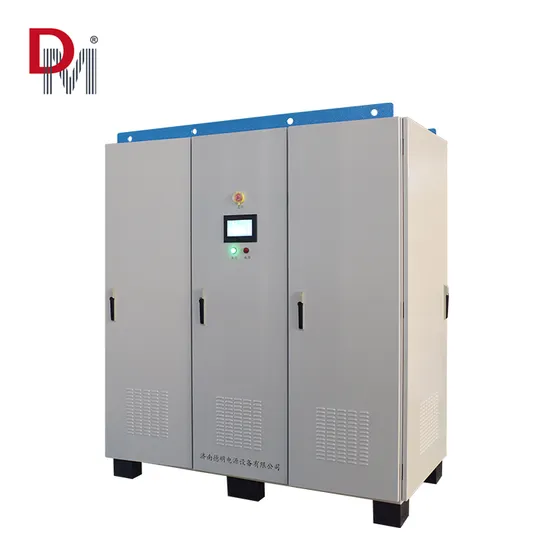

300kw 400kw 500kw Three Phases Inverter AC220V AC380V AC400V 50Hz 60Hz Intelligent Solar Power Inverter and Wind Turbine Inverter
- Inicio
- 300kw 400kw 500kw Three Phases Inverter AC220V AC380V AC400V 50Hz 60Hz Intelligent Solar Power Inverter and Wind Turbine Inverter
300kw 400kw 500kw Three Phases Inverter AC220V AC380V AC400V 50Hz 60Hz Intelligent Solar Power Inverter and Wind Turbine Inverter
- DEMING
Energy Producers Ltd
- Categoría
Categorías: Off Grid Power Inverter
- Fecha
2026-04-07
Proyectos generales
¿Te ha gustado esta obra? Compártelo
Price: US$24,500.00-40,700.00 1 Piece (MOQ)
MOQ: 1 Piece (MOQ)
Metallurgy, Mineral & Energy Solar & Renewable Energy Wind Inverter
| US$24,500.00-40,700.00 | 1 Piece
(MOQ) |
|---|---|
| Customization: | Available |
| Output Power: | 500kw |
| Battery Bank Voltage: | 480V |
| Type | NB480-500KSZ |
| DC input | Input rated voltage |
| Input rated current | 1280A / 760A / 725A |
| Input DC voltage range | 400-620 VDC |
| AC input(AC Bypass) | Allow input voltage range |
| Bypass transfer time | ≤100 ms (Can be customized ≤ 4ms version) |
| AC output | Rated capacity |
| Output rated power | 400KW |
| Output rated voltage and frequency | 220 VAC / 380 VAC / 400 VAC ,50Hz / 60Hz |
| Output rated current | 1280A / 760A / 725A |
| Output voltage accuracy | 220 VAC / 380 VAC / 400 VAC ± 1% |
| Output frequency accuracy | 50Hz / 60Hz ±0.05% |
| Waveform distortion (THD). (Linear load) |
≤3% |
| Dynamic response time (Load 0←→100%) |
2ms |
| Power factor (PF) | 0.8 |
| Overload capacity | 110%,3 minutes,150%,5 seconds |
| Crest factor (CF) | 3:1 |
| Inverter efficiency | 90% |
| Working Environment | Dielectric strength |
| Noise (1m) | ≤50dB |
| Ambient temperature | -10ºC~+50ºC |
| Humidity | 0~90%,No condensation |
| Altitude | <2000m(Higher than 2000m rated power should be reduced) |
| Production function | Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection |
| Pure Sine Wave | Yes |
| Equipped with copper transformer | Yes |
| AC Charger | Optional |
| Solar Charger | Optional |
| Generator port | Optional |
| Product Size(mm) | 1910*1160*1880mm |
| Product Weight(kg) | 1500kg |
| AC Bypass | Yes, when there is no enough battery power, will switch to Grid |
| Product Size | 1910*1160*1880mm |
| Product Weight | 1500-1800kg |
