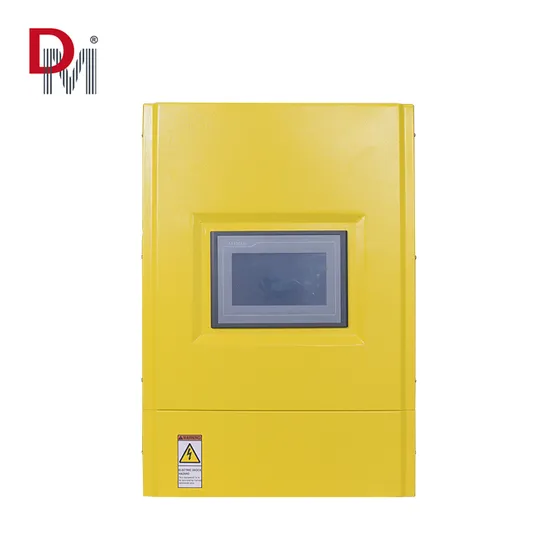

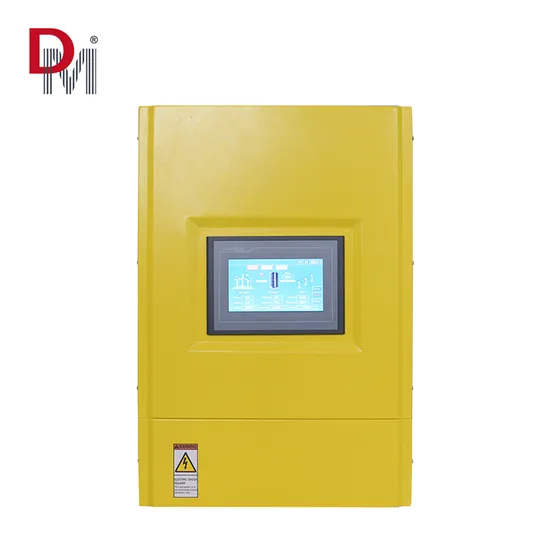

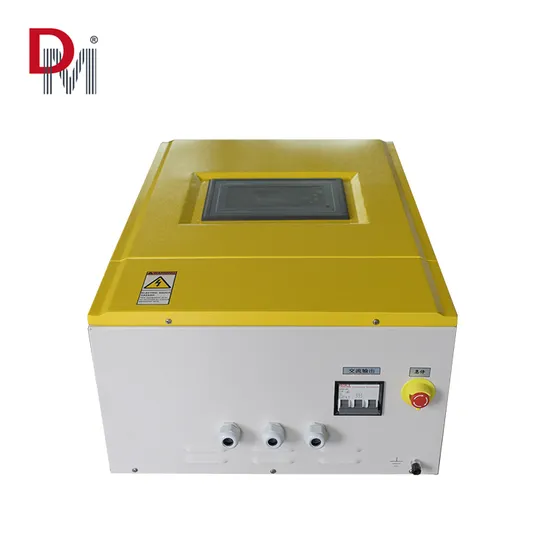

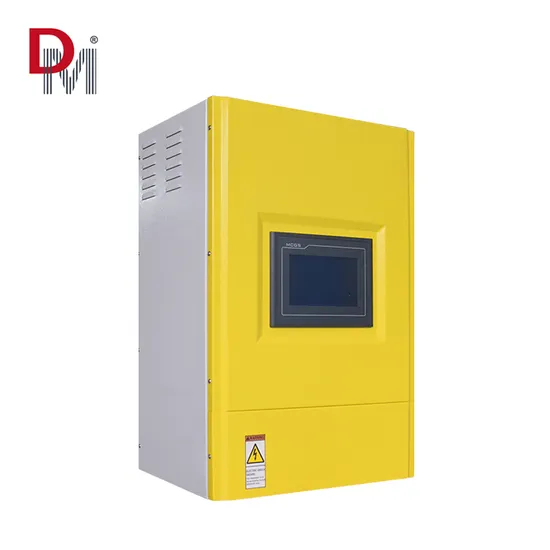

on Grid Wind Inverter 5kw

  • Home
  • on Grid Wind Inverter 5kw
on Grid Wind Inverter 5kw

on Grid Wind Inverter 5kw

  • DEMING
Energy Producers Ltd
  • Category
Categories: ,
  • Date
Facebook Twitter Youtube Skype
$5700

Overview Projects

Did you like this Work? Please Share
on Grid Wind Inverter 5kwon Grid Wind Inverter 5kwon Grid Wind Inverter 5kwon Grid Wind Inverter 5kwon Grid Wind Inverter 5kwon Grid Wind Inverter 5kwon Grid Wind Inverter 5kwon Grid Wind Inverter 5kwon Grid Wind Inverter 5kwon Grid Wind Inverter 5kw

Hot sale  mppt 5KW on grid wind inverter single phase with high efficiency

 5kw on grid wind inverter technical data sheet

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Rating capacity

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >5KW

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Rating AC output power

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >5KW

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Max. AC output power

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >5.5KW

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Isolation

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Low frequency transformer isolation

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Recommending wind turbine power

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >5KW

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Max. AC open circuit voltage

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >780VDC

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >MPPT range

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >180-780VDC

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Max. DC Input current

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >25A

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >DC connecting mode

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >In-line waterproof terminal

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Max. Efficiency

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >94%

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >  Euro efficiency

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >92%

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Allowing network voltage range (single phase)

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >180~265VAC

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Allowing network frequency range

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >50HZ±2%&60HZ±2%

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Total current waveform distortion factor

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” ><3%

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Power factor

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >≥0.99

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Internal power consumption an night

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” ><10W

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Comm. interfaces

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >RS485/RS232

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >electrical insulating performance

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >1500Vac,1minute

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Using environment temperature

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >-25~+60ºC

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Using environment humidity

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >0~100%

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Protection

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Input short voltage,over voltage,opposing connection,output over current,short circuit,over heat etc.

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Cooling method

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Air cooling

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Noise

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” ><40dB

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Protection class

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >IP20(indoor),IP65(outdoor)

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Width ×depth ×height(mm)

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >656*430*303mm

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Weight (kg)

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >60

Model DMWG-5KD

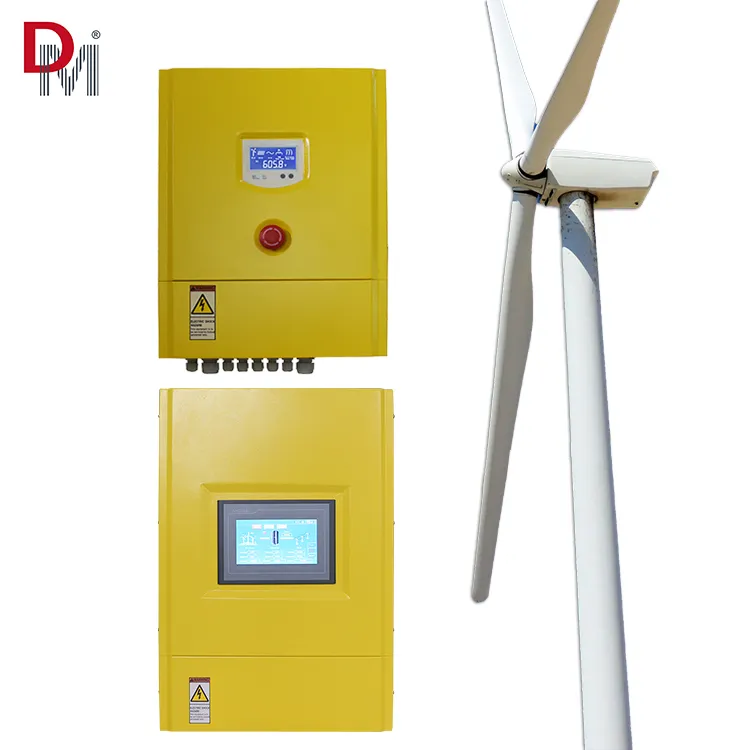

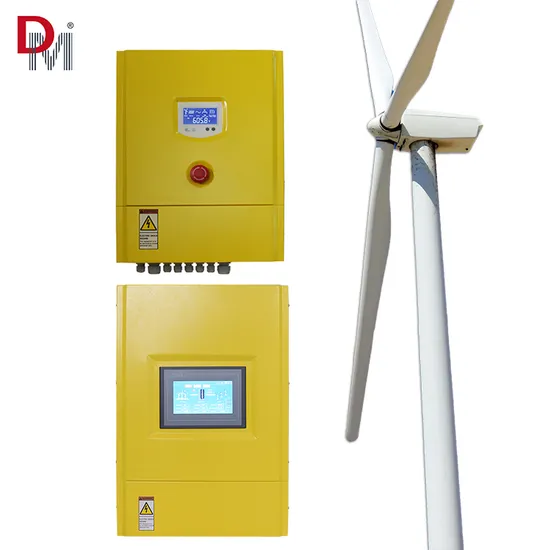

5KW On Grid Wind(Solar) Controller

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Wind turbine rated power

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >5KW

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >10KW

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >15KW

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Wind turbine Max. power

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >10KW

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >20KW

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >30KW

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Display Mode td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Function

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” colspan=”3″>Rectifier,charge, control

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Display content

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” colspan=”3″>DC output voltage

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >PWM constant voltage

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >≥420dc

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >≥520dc

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >≥600dc

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >wind turbine 3-phase dump load voltage

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >450±5Vdc

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >560±5Vdc

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >650±5Vdc

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Time-lapse of the wind turbine 3-phase dump load

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >12-20 min

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >12-20 min

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >12-20 min

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Low-voltage

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >≤200Vdc

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >≤200Vdc

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >≤200Vdc

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >PWM dump load fuse

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >20A

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >32A

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >40A

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Fuse of DC output

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >20A

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >40A

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >50A

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Work environment temperature

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” colspan=”3″>-30-60°C

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Relative humidity

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” colspan=”3″><90% No condensation

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Noise (1m)

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” colspan=”3″><40dB

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Degree of protection

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” colspan=”3″>IP20(Indoor)

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Cooling method

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” colspan=”3″>Forced air cooling

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >*Communication interface (optional)

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” colspan=”3″>RS485/USB/GPRS/Ethernet

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >*Temperature compensation (optional)

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” colspan=”3″>-4mv/°C/2V,-35°C~+80°C,Accuracy:±1°C

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Size of the controller (mm)

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >560*430*320

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >650*470*320

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >650*470*320

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Weight of the controller

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >20Kg

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >25Kg

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >25Kg

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Size of the dump load (mm)

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >670*520*460

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >760*520*550

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >760*520*550

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >Weight of the dump load

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >28Kg

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >38Kg

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >38Kg

Type FKJ-GT-5KW 10KW 15KW
LED

Specifications

Customization: Available Nature of Source Flow: Active Inverter Certification: ISO9001, CE
Model DMWG-5KD
Rating capacity 5KW
Rating AC output power 5KW
Max. AC output power 5.5KW
Isolation Low frequency transformer isolation
Recommending wind turbine power 5KW
Max. AC open circuit voltage 780VDC
MPPT range 180-780VDC
Max. DC Input current 25A
DC connecting mode In-line waterproof terminal
Max. Efficiency 94%
Euro efficiency 92%
Allowing network voltage range (single phase) 180~265VAC
Allowing network frequency range 50HZ±2%&60HZ±2%
Total current waveform distortion factor <3%
Power factor ≥0.99
Internal power consumption an night <10W
Comm. interfaces RS485/RS232
electrical insulating performance 1500Vac,1minute
Using environment temperature -25~+60ºC
Using environment humidity 0~100%
Protection Input short voltage,over voltage,opposing connection,output over current,short circuit,over heat etc.
Cooling method Air cooling
Noise <40dB
Protection class IP20(indoor),IP65(outdoor)
Width &times;depth &times;height(mm) 656*430*303mm
Weight (kg) 60
Type FKJ-GT-5KW
10KW
15KW
Wind turbine rated power 5KW
10KW
15KW
Wind turbine Max. power 10KW
20KW
30KW
Display Mode LED
Function Rectifier,charge, control
Display content DC output voltage
PWM constant voltage ≥420dc
≥520dc
≥600dc
wind turbine 3-phase dump load voltage 450±5Vdc
560±5Vdc
650±5Vdc
Time-lapse of the wind turbine 3-phase dump load 12-20 min
12-20 min
12-20 min
Low-voltage ≤200Vdc
≤200Vdc
≤200Vdc
PWM dump load fuse 20A
32A
40A
Fuse of DC output 20A
40A
50A
Work environment temperature -30-60°C
Relative humidity <90% No condensation
Noise (1m) <40dB
Degree of protection IP20(Indoor)
Cooling method Forced air cooling
*Communication interface (optional) RS485/USB/GPRS/Ethernet
*Temperature compensation (optional) -4mv/°C/2V,-35°C~+80°C,Accuracy:±1°C
Size of the controller (mm) 560*430*320
650*470*320
650*470*320
Weight of the controller 20Kg
25Kg
25Kg
Size of the dump load (mm) 670*520*460
760*520*550
760*520*550
Weight of the dump load 28Kg
38Kg
38Kg
