Price: US$6,500.00 1-9 Pieces US$6,300.00 10+ Pieces
MOQ: 1 Piece (MOQ)
Metallurgy, Mineral & Energy Solar & Renewable Energy Solar Inverter
| Customization: | Available |
|---|---|
| Nature of Source Flow: | Passive inverter |
| Output Power: | >1000W |
| Model | NB220-50KSZ |
| Rated Capacity | Output two phase 50KW |
| Circuit Mode | IGBT/PWM |
| Input Rated Current | 227A |
| Input DC voltage Range | DC180-300V |
| Output Mode | Two phase three wires |
| Output Wave | Pure Sine Wave |
| Output Voltage | L1-N: 110Vac/120Vac, L2-N: 110Vac/120Vac, L1-L2: 220Vac/240Vac |
| Output Voltage accuracy | ±1% |
| Output frequency | 50Hz |
| Output frequency accuracy | ±0.01% |
| Rated capacity | 50KVA |
| Output rated power | 50KW |
| Output Rated ampere | 227A |
| Maximum output over current | 250A |
| Maximum nominal current of loads | 227A |
| Power factor | 1 |
| Overload capacity | 120% 109A ,3 minutes,150% 136.4A,10 seconds |
| Dynamic voltage transient range | 2%(0~100% load change) |
| VTHD(Distortion) | THD<3%( non-linear load) |
| Display Window | High accuracy four-in-one LED display |
| Four digit voltmeter | Accuracy 0.1V |
| Four digit ampere meter | Accuracy 0.1A |
| Four digit frequency meter | Accuracy 0.1Hz |
| Four digit power/power factor meter | Accuracy 0.1W |
| System efficiency | Normal mode: 94% |
| insulation resistance | DC> 500V 20MΩ |
| insulating strength | (Input and output to ground)1800Vdc, leakage current<3.5mA,No-arcing for 1 min |
| Protection Class | IP22 |
| Wiring method | Input and output wiring terminals,line bank |

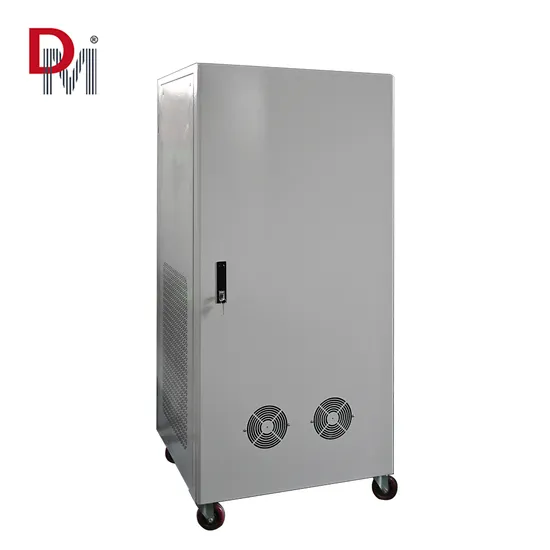

| Thermal methods | Transformer forced fan cooling |
| Working temperature | -10ºC~+50ºC |
| Relative humidity | 0-90%(No condensation) |
| Noise(dB) | <65dB |
| Protection Function | Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection |
| Equipped with AC Bypass | Yes |
