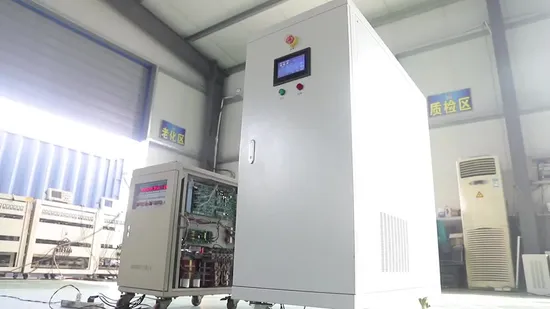

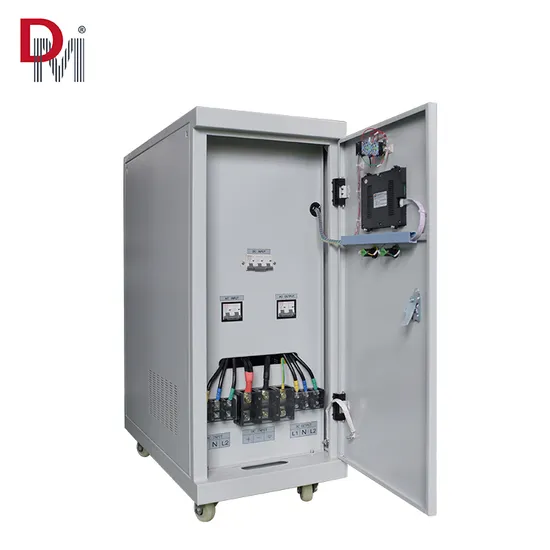

50kw DC220V to AC220V AC230V Single Phase Inverer with Pure Sine Wave Output Power Inverter

Energy Producers Ltd

Categories: Power Inverter

2026-04-05

$5700

Overview Projects

Did you like this Work? Please Share

Product Description

Power Frequency Pure Sine Wave Inverter Features:

1.Complete isolation-type inverter technology, noiseless output.

2.Adoption of advanced SPWM technology, pure sine wave output.

3.Dynamic current loop control technology to ensure inverter reliable operation.

4.Wide DC input voltage range.

5.Excellent EMC design.

6.Low output harmonic distortion (THD≤3%).

7.LED indicators for input voltage range, load power range, normal output & failure state.

8.Optional energy saving mode.

9.Extensive protections: reverse polarity, short-circuit, overload, under/over input voltage, over-temperature, and inverter’s inner fault identification protections.

10.Wide working temperature range (industrial level).

11.Continuous operation at full power.
Application
1. For desolate area like mountain, island, pasturing area, etc.
2. For transportation system like beacon light, traffic light, street light, etc.
3. For communication system: unattached operation microwave middle station, optical
cable maintenance station, etc.
4. For photovoltaic power station, wind-solar power station, park charging station, family
power house, factory power station, etc.
5. For solar building: has good business future.
6. For the new technology application project.

off grid solar power system

off grid wind turbine power system

50KVA off grid single phase inverter technical parameters

Model		NB220-50KDZ	NB380-50KDZ
DC input	Input rated voltage	220 VDC	380 VDC
	Input rated current	252.5 A	146 A
	Input DC voltage allowing range	180-280 VDC	350-500VDC
AC input (AC bypass)	Allow input voltage range	110 VAC / 120 VAC / 220 VAC / 240 VAC ± 15%
	Input rated current	455A / 417A / 227A /208A
	Bypass transfer time	≤100 ms (4ms optional)
AC output	Rated capacity	50KVA
	Output rated voltage and frequency	110 VAC / 120 VAC / 220 VAC / 240 VAC,50Hz / 60Hz
	Output rated current	455A / 417A / 227A / 208A
	Output voltage accuracy	110 VAC / 120 VAC / 220 VAC / 240 VAC± 2%
	Output frequency accuracy	50Hz / 60Hz ± 0.05%
	Wave	Pure sine wave (Isolation transformer)
	THD.	≤3%(Linear load)
	Overload capacity	120%,10 minutes
	Overcurrent capacity	200%,10 seconds
	Overload capacity	120%,3 minutes,150%,10 second
	Crest factor (CF)	3:1
	Inverter efficiency	>92%
Working Environment	Dielectric strength	1500VAC,1minute
	Noise (1m)	≤50dB
	Ambient temperature	-10ºC~+50ºC
	Humidity	0~90%, No condensation
	Altitude	<2000m Higher than 2000m rated power should be reduced
Production function		Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Communication interface		RS485/WIFI/GPRS/Ethernet (optional)

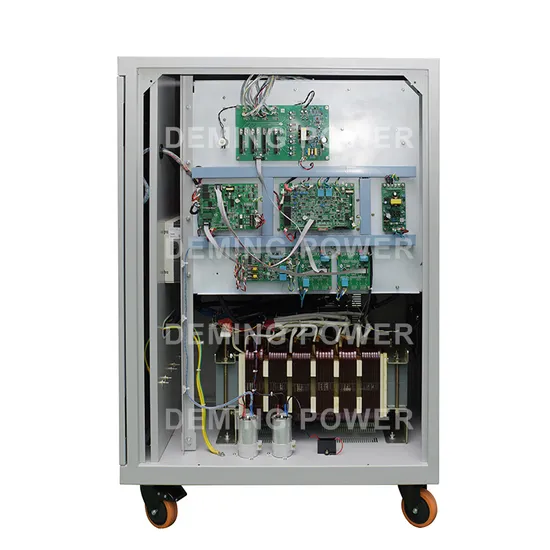

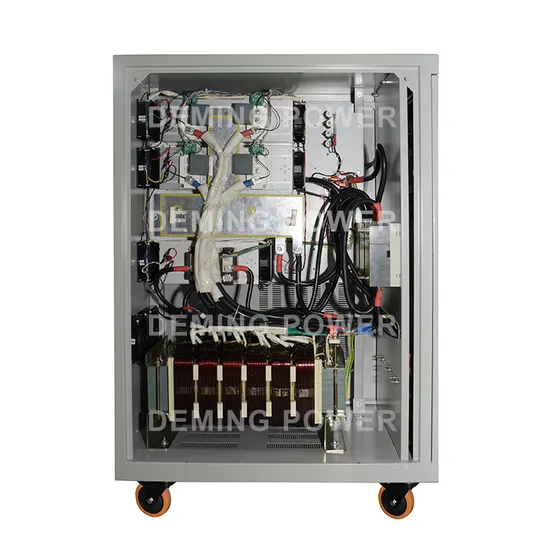

Equipped With Copper Transformer		Yes
Solar Charger		Optional
AC Charger		Optional
Generator Port		Optional
Size		66013001600 mm
Weight		450 kg

30KVA off grid single phase inverter technical parameters

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” …>Specifications

Model		NB110-30KDZ	NB220-30KDZ	NB380-30KDZ
DC input	Input rated voltage	110 VDC	220 VDC	380 VDC
	Input rated current	303A	151.5 A	87.7A
	Input DC voltage allowing range	90- 140VDC	180-280 VDC	320-500VDC
AC input (AC bypass)	Allow input voltage range	110 VAC / 120 VAC / 220 VAC / 240 VAC ± 15%
	Input rated current	272A / 250A / 136 A /125A
	Bypass transfer time	≤40 ms (4ms optional)
AC output	Rated capacity	30KVA
	Output rated voltage and frequency	110 VAC / 120 VAC / 220 VAC / 240 VAC,50Hz / 60Hz
	Output rated current	272A / 250A / 136 A /125A
	Output voltage accuracy	110 VAC / 120 VAC / 220 VAC / 240 VAC± 2%
	Output frequency accuracy	50Hz / 60Hz ± 0.05%
	Wave	Pure sine wave (Isolation transformer)
	THD.	≤3%(Linear load)
	Power factor (PF)	0.8
	Overload capacity	120%,10 minutes
	Overcurrent capacity	200%,10 seconds
	Crest factor (CF)	3:1
	Inverter efficiency	>92%
Working Environment	Dielectric strength	1500VAC,1minute
	Noise (1m)	≤50dB
	Ambient temperature	-10ºC~+50ºC
	Humidity	0~90%, No condensation
	Altitude	<2000m Higher than 2000m rated power should be reduced
Production function		Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Communication interface		RS485/WIFI/GPRS/Ethernet (optional)
Equipped With Copper Transformer		Yes
Solar Charger		Optional
AC Charger		Optional
Generator Port

th style=”border:1px solid #ccc;padding:10px;background:#f5f5f5;text-align:left;font-size:13px;font-weight:bold;” >[‘Customization:’, ‘Available’]

th style=”border:1px solid #ccc;padding:10px;background:#f5f5f5;text-align:left;font-size:13px;font-weight:bold;” >[‘Nature of Source Flow:’, ‘Passive inverter’]

th style=”border:1px solid #ccc;padding:10px;background:#f5f5f5;text-align:left;font-size:13px;font-weight:bold;” >[‘Certification:’, ‘ISO9001, RoHS, CE’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Model’, ‘NB220-50KDZ’, ‘NB380-50KDZ’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘DCxa0input’, ‘Input rated voltage’, ‘220 VDC’, ‘380 VDC’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Input rated current’, ‘252.5 A’, ‘146 A’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Input DC voltage allowing range’, ‘180-280 VDC’, ‘350-500VDC’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘AC input(AC bypass)’, ‘Allow input voltage range’, ‘110 VAC / 120 VAC / 220 VAC / 240 VAC ± 15%’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Input rated current’, ‘455A / 417A / 227A /208A’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Bypass transfer time’, ‘≤100 ms (4ms optional)’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘AC output’, ‘Rated capacity’, ’50KVA’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Output rated voltage and frequency’, ‘110 VAC / 120 VAC / 220 VAC / 240 VAC,50Hz / 60Hz’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Output rated current’, ‘455A / 417A / 227A / 208A’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Output voltage accuracy’, ‘110 VAC / 120 VAC / 220 VAC / 240 VAC± 2%’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Output frequency accuracy’, ’50Hz / 60Hz ± 0.05%’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Wave’, ‘Pure sine wavexa0xa0 (Isolation transformer)’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘THD.’, ‘≤3%(Linear load)’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Overload capacity’, ‘120%,10 minutes’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Overcurrent capacity’, ‘200%,10 seconds’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Overload capacity’, ‘120%,3 minutes,150%,10 second’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Crest factor (CF)’, ‘3:1’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Inverter efficiency’, ‘>92%’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Working Environment’, ‘Dielectric strength’, ‘1500VAC,1minute’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Noise (1m)’, ‘≤50dB’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Ambient temperature’, ‘-10ºC~+50ºC’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Humidity’, ‘0~90%, No condensation’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Altitude’, ‘<2000m Higherxa0thanxa02000m ratedxa0powerxa0shouldxa0bexa0reduced’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Production function’, ‘Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Communication interface’, ‘RS485/WIFI/GPRS/Ethernet (optional)’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Equipped With Copper Transformer’, ‘Yes’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Solar Charger’, ‘Optional’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘AC Charger’, ‘Optional’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Generator Port’, ‘Optional’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Size’, ‘660*1300*1600 mm’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Weight’, ‘450 kg’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Model’, ‘NB110-30KDZ’, ‘NB220-30KDZ’, ‘NB380-30KDZ’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘DCinput’, ‘Input rated voltage’, ‘110 VDC’, ‘220 VDC’, ‘380 VDC’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Input rated current’, ‘303A’, ‘151.5 A’, ‘87.7A’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Input DC voltage allowing range’, ’90- 140VDC’, ‘180-280 VDC’, ‘320-500VDC’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘AC input(AC bypass)’, ‘Allow input voltage range’, ‘110 VAC / 120 VAC / 220 VAC / 240 VAC ± 15%’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Input rated current’, ‘272A / 250A / 136 A /125A’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Bypass transfer time’, ‘≤40 ms (4ms optional)’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘AC output’, ‘Rated capacity’, ’30KVA’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Output rated voltage and frequency’, ‘110 VAC / 120 VAC / 220 VAC / 240 VAC,50Hz / 60Hz’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Output rated current’, ‘272A / 250A / 136 A /125A’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Output voltage accuracy’, ‘110 VAC / 120 VAC / 220 VAC / 240 VAC± 2%’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Output frequency accuracy’, ’50Hz / 60Hz ± 0.05%’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Wave’, ‘Pure sine wave (Isolation transformer)’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘THD.’, ‘≤3%(Linear load)’]

td style=”border:1px solid #ccc;padding:8px;font-size:12px;” >[‘Power factor (PF)’, ‘0.8’]
