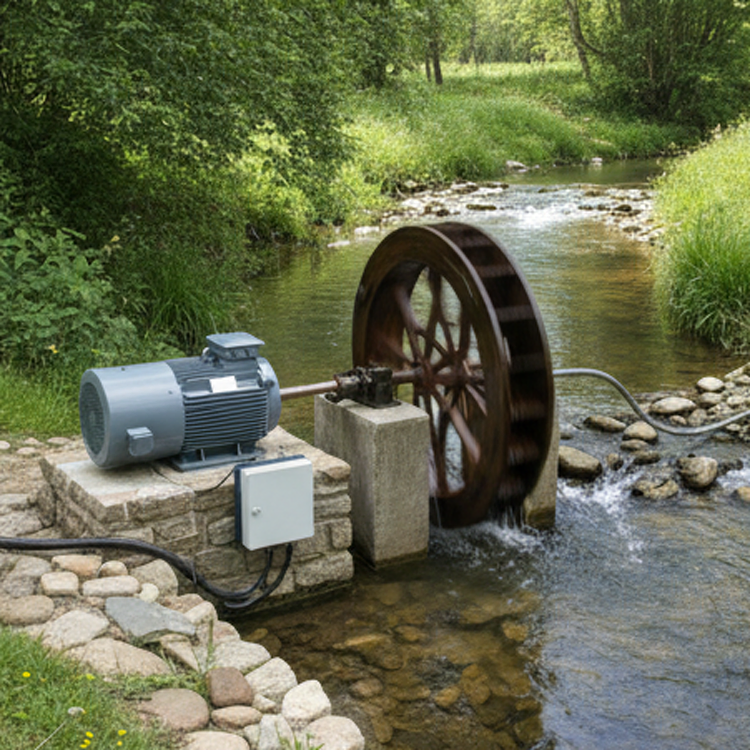

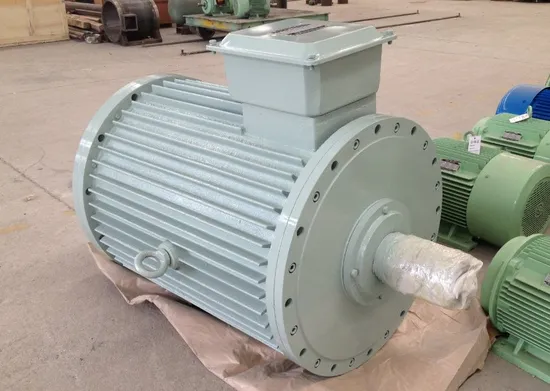

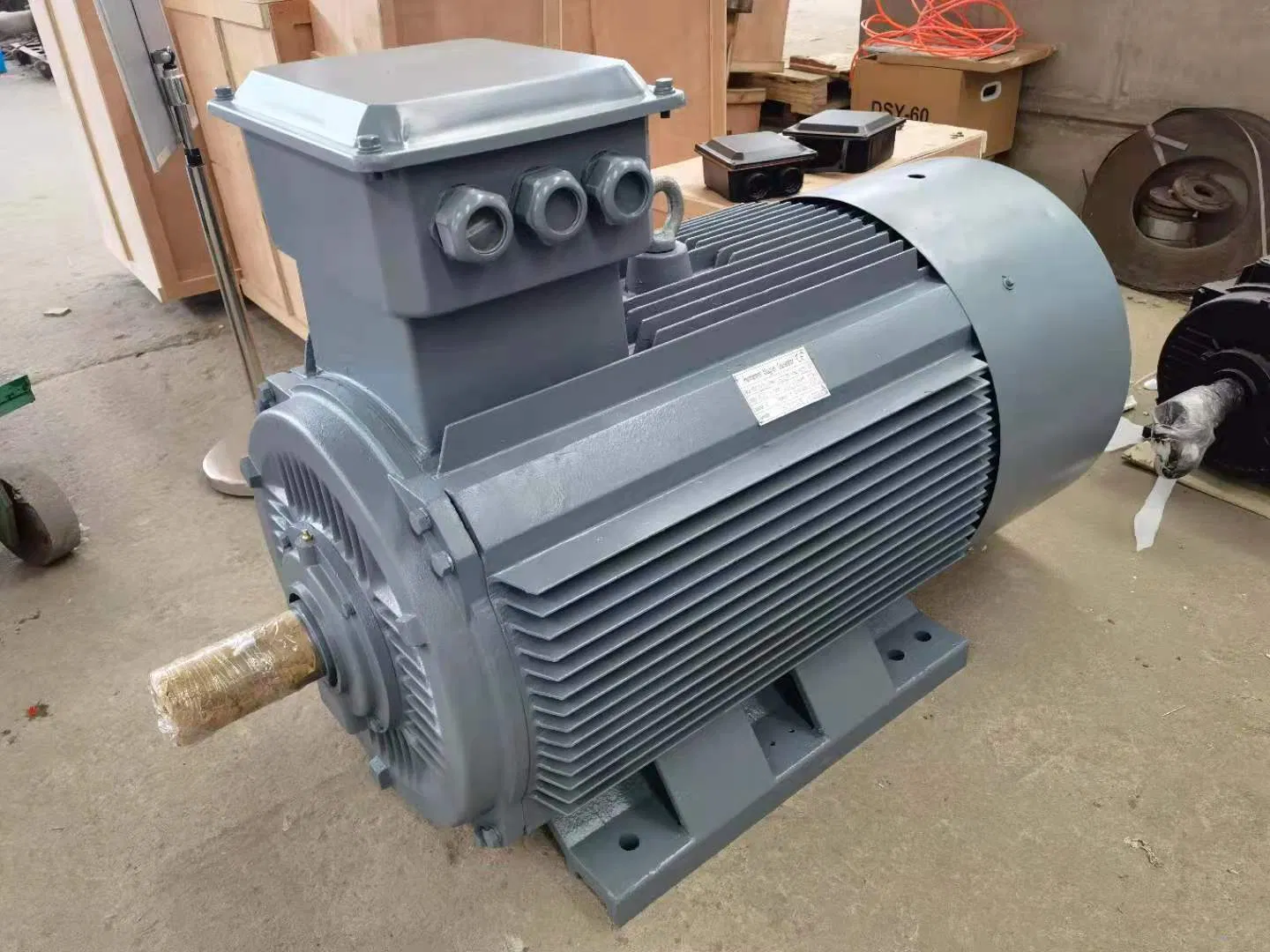

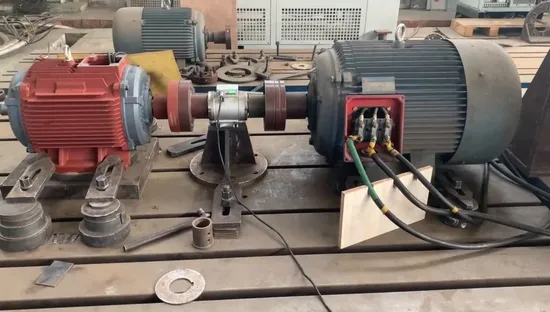

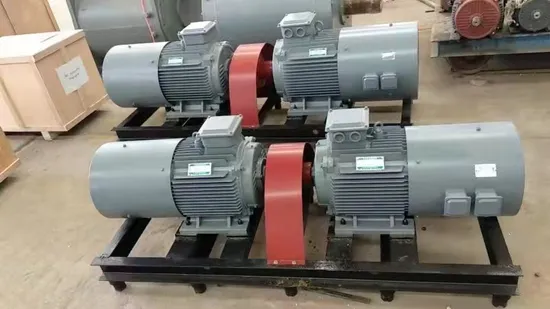

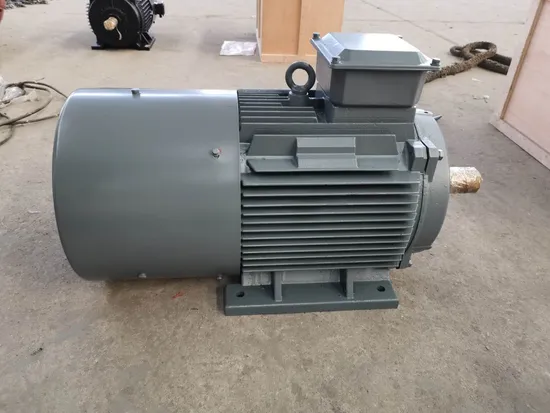

25KW 500RPM PMG Hydraulic permanent magnet generator Hydroelectric Power
1. Optimum aerodynamic shape design: high efficiency, low noise.
2. Centrifugal pitch controlled mechanism: 3m/s low wind speed startup; 3-12m/s wind speed, following wind rotor rotate speed to adjust blade angle at optimum TSR, run in high efficiency; over rated wind speed, wind rotor never goes to over speed and has stable control; 3-35m/s wind speed, wind turbine can run smoothly.
3. Direct drive permanent magnet generator, low startup resistance moment, constant running ability of over loading 1.5 times, maintenance free for more than 30000 hour.
4. Safety control: has aerodynamic brake, electric magnet brake, mechanical brake and manual stop mechanism.
5. Sealed slip ring, no cable twist;
6. Streamline design.
7. Long acting anticorrosive treats, no corrosion in 15years.
| On grid wind turbine controller | WGMC50K380 | WGMC100K380 | WGMC200K380 | ||||
| Wind turbine input | |||||||
| Power | 50KW | 100KW | 200KW | ||||
| Max. Control power / current | 100KW/200A | 200KW/400A | 400KW/800A | ||||
| Rated voltage of wind turbine (AC) | 380V/400V | 380V/400V | 380V/400V | ||||
| Input voltage range | AC | 0-600V | 0-600V | 0-600V | |||
| DC | 0-900V | 0-900V | 0-900V | ||||
| Braking voltage (DC) | Default | 550V±1% | 550V±1% | 550V±1% | |||
| Set range | 530-560V | 530-560V | 530-560V | ||||
| Braking current (DC) | Default | 150A | 300A | 600A | |||
| Set range | 0-150A | 0-300A | 0-600A | ||||
| Braking time | Default | 10-20 min | |||||
| Set range | 0-5000 min | ||||||
| * Generator overspeed control | Default | >300 rpm/min | |||||
| Set range | 0-1000 rpm/min | ||||||
| * Over wind speed control | Default | 14 m/s | |||||
| Set range | 0-45 m/s | ||||||
| Manual control | Manual brake , *remote control brake (with communication function) | ||||||
| Automatic control function | Dump load control, * yaw, * pitch, * mechanical brake, * hydraulic brake, * electromagnetic brake | ||||||
| DC output parameters | |||||||
| Output voltage range (DC) | 0-550V | 0-550V | 0-550V | ||||
| Constant voltage (DC) | Default | 520V±1% | 520V±1% | 520V±1% | |||
| Set range | 510-540V | 510-540V | 510-540V | ||||
| Constant current (DC) | Default | 120A | 240A | 480A | |||
| Set range | 0-120A | 0-240A | 0-480A | ||||
| On grid wind turbine inverter | DMWG50K | DMWG100K | DMWG200K | ||||
| Rated output power (AC) | 50KW | 100KW | 200KW | ||||
| Max. Output power (AC) | 55KW | 110KW | 220KW | ||||
| Input voltage rang (DC) | 0-800V | 0-800V | 0-800V | ||||
| MPPT Voltage range (DC)(DC) | 150V-700V | 150V-700V | 150V-700V | ||||
| Max. Input current (DC) | 114.6A | 229A | 458.3A | ||||
| Rated current | 104A | 208A | 416.7A | ||||
| THD Current harmonic | <3%(at rated power) | ||||||
| Power factor | >0.99 | ||||||
| Max. efficiency | 96% | ||||||
| Allowable grid voltage range (AC) | 220V/380V/440V/480V (Three-phase)±20% | ||||||
| Allowable grid frequency range | 50Hz/60Hz±10% | ||||||
| Automatic operation conditions | DC input and power grid meet the requirements, and the inverter operates automatically | ||||||
| Restart time after power failure | 2min(Adjustable) | ||||||
| General parameters | |||||||
| Function | Rectification, DC output, output voltage control, output current control, Dump load control, control parameter setting, wind turbine curve setting | ||||||
| Automatic protection | Control part: Over voltage protection, over current protection, reverse connection protection, lightning arrester Inverter part: Polarity reverse connection protection, short circuit protection, island effect protection, LVRT,overheat protection, overload protection, ground fault protection, etc | ||||||
| Display | Touch screen, LCD | ||||||
| Monitoring content | Wind turbine voltage, current, power, solar panel voltage, current, power, DC output voltage, current, power, inverter output power, * cumulative power generation, * power generation at any time, * rotational speed, * wind speed | ||||||
| Protection level | IP20(Indoor)IP65 (Outdoors) | ||||||
| Telematics | RS485/USB/GPRS/WIFI/Ethernet (optional) | ||||||
| Environment | Operating amb. Temp. & Hum -30-60°C,<90% no condensation | ||||||
| Noise (1m) | <40dB | ||||||
| Refrigeration mode | Forced air cooling | ||||||
| Controller size / weight | 500*500*900mm 56kg | 600*500*1200mm 107kg | |||||
| Customization: Available | Conditions of Use: Land Use | Usage: Common Units | |||||
|---|---|---|---|---|---|---|---|
| On grid wind turbine controller | WGMC50K380 WGMC100K380 WGMC200K380 | ||||||
| Power | 50KW 100KW 200KW | ||||||
| Max. Control power / current | 100KW/200A 200KW/400A 400KW/800A | ||||||
| Rated voltage of wind turbine (AC) | 380V/400V 380V/400V 380V/400V | ||||||
| Input voltage range | AC 0-600V 0-600V 0-600V | ||||||
| DC | 0-900V 0-900V 0-900V | ||||||
| Braking voltage (DC) | Default 550V±1% 550V±1% 550V±1% | ||||||
| Set range | 530-560V 530-560V 530-560V | ||||||
| Braking current (DC) | Default 150A 300A 600A | ||||||
| Set range | 0-150A 0-300A 0-600A | ||||||
| Braking time | Default 10-20 min | ||||||
| Set range | 0-5000 min | ||||||
| * Generator overspeed control | Default >300 rpm/min | ||||||
| Set range | 0-1000 rpm/min | ||||||
| * Over wind speed control | Default 14 m/s | ||||||
| Set range | 0-45 m/s | ||||||
| Manual control | Manual brake , *remote control brake (with communication function) | ||||||
| Automatic control function | Dump load control, * yaw, * pitch, * mechanical brake, * hydraulic brake, * electromagnetic brake | ||||||
| Output voltage range (DC) | 0-550V 0-550V 0-550V | ||||||
| Constant voltage (DC) | Default 520V±1% 520V±1% 520V±1% | ||||||
| Set range | 510-540V 510-540V 510-540V | ||||||
| Constant current (DC) | Default 120A 240A 480A | ||||||
| Set range | 0-120A 0-240A 0-480A | ||||||
| On grid wind turbine inverter | DMWG50K DMWG100K DMWG200K | ||||||
| Rated output power (AC) | 50KW 100KW 200KW | ||||||
| Max. Output power (AC) | 55KW 110KW 220KW | ||||||
| Input voltage rang (DC) | 0-800V 0-800V 0-800V | ||||||
| MPPT Voltage range (DC)(DC) | 150V-700V 150V-700V 150V-700V | ||||||
| Max. Input current (DC) | 114.6A 229A 458.3A | ||||||
| Rated current | 104A 208A 416.7A | ||||||
| THD Current harmonic | <3%(at rated power) | ||||||
| Power factor | >0.99 | ||||||
| Max. efficiency | 96% | ||||||
| Allowable grid voltage range (AC) | 220V/380V/440V/480V (Three-phase)±20% | ||||||
| Allowable grid frequency range | 50Hz/60Hz±10% | ||||||
| Automatic operation conditions | DC input and power grid meet the requirements, and the inverter operates automatically | ||||||
| Restart time after power failure | 2min(Adjustable) | ||||||
| Function | Rectification, DC output, output voltage control, output current control, Dump load control, control parameter setting, wind turbine curve setting | ||||||
| Automatic protection | Control part: Over voltage protection, over current protection, reverse connection protection, lightning arrester Inverter part: Polarity reverse connection protection, short circuit protection, island effect protection, LVRT,overheat protection, overload protection, ground fault protection, etc | ||||||
| Display | Touch screen, LCD | ||||||
| Monitoring content | Wind turbine voltage, current, power, solar panel voltage, current, power, DC output voltage, current, power, inverter output power, * cumulative power generation, * power generation at any time, * rotational speed, * wind speed | ||||||
| Protection level | IP20(Indoor)IP65 (Outdoors) | ||||||
| Telematics | RS485/USB/GPRS/WIFI/Ethernet (optional) | ||||||
| Environment | Operating amb. Temp. & Hum -30-60°C,<90% no condensation | ||||||
| Noise (1m) | <40dB | ||||||
| Refrigeration mode | Forced air cooling | ||||||
| Controller size / weight | 500*500*900mm 56kg 600*500*1200mm 107kg 950*550*1700mm 150kg | ||||||
| Dump load size / weight | 920*770*380mm 80kg 920*770*380mm*2 150kg 923*739*510mm*4 280kg | ||||||
| Inverter size / weight | 750*600*1320mm 340kg 1460*860*1820mm 1.4t 1460*860*1820mm 1.6t | ||||||
