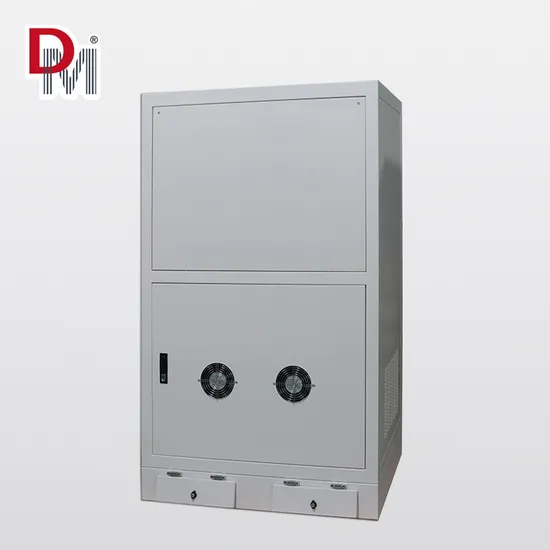

100–300 kW Power Conversion System Inverter with Isolated Transformer for Microgrid
- Home
- 100–300 kW Power Conversion System Inverter with Isolated Transformer for Microgrid
Overview Projects
Did you like this Work? Please Share
MOQ: 1 Piece
| Rated power range | 100–300 kW (model dependent) |
|---|---|
| Customization: | Available |
| After-sales Service: | Yes |
| Warranty: | 2 Years |
| Operation mode | Continuous |
| AC wiring mode | Three phase four wire |
| DC voltage range Vdc | 200-700Vdc |
| Recommended battery nominal voltage | 240V 384V 420V 480V |
| Voltage accuracy | ±1% |
| Steady flow accuracy | ±1% |
| DC current ripple | <1% IPP |
| Rated grid voltage(AC) | 220V / 380V / 440V |
| Grid voltage range(AC) | ±20% |
| Rated grid frequency | 50Hz / 60Hz |
| Grid frequency range | ±10% |
| Rated power(THD) | <3% (Standard grid) |
| Power factor | 0.8leading-1-0.8lagging, adjustable |
| Rated output voltage(AC) | 220V / 380V / 440V±1% |
| Output voltage distortion | <3% ( resistive load) |
| Rated output frequency | 50Hz / 60Hz ±1% |
| Voltage transition range | <10% (Resistance load 0% 100%) |
| On/off grid switching time | 0ms |
| Max. conversion efficiency | 97% |
| Noise | <60dB |
| Protection Degree | IP21 |
| Working Temperature | -25ºC~+45ºC |
| Cooling method | Air cooling |
| Working humidity | 0~95% |
| Working altitude | ≤6000m(Reduced usage for more than 2000m) |
| Emergency stop | Yes (via emergency stop button) |
| Display | Touch screen |
| Communication mode | RS485,WIFI,GPRS,Ethernet (Modbus protocol) |
| Dimensions | 690*275*770mm |
| Weight | 42KG |
| Rated charge current | 50A |
| Grid voltage range | ±20% |
