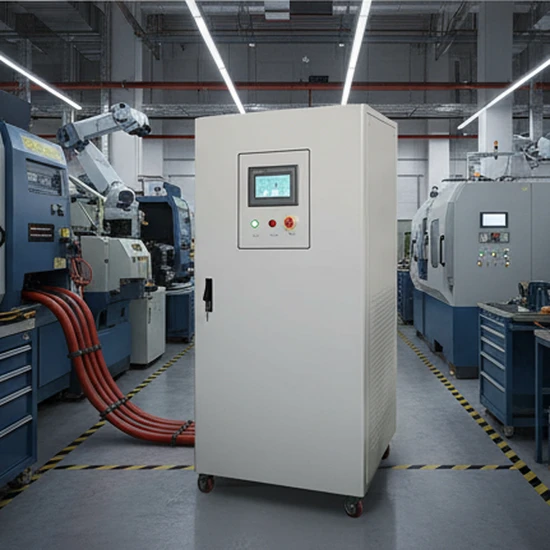

Off Grid Solar Hybrid Inverter 40–70 kW Three Phase Hybrid Inverter

  • Home
  • Off Grid Solar Hybrid Inverter 40–70 kW Three Phase Hybrid Inverter
off Grid Solar Hybrid Inverter 40kw50kw60kw70kw Hybrid Solar Three Phase Inverter for Solar System
off Grid Solar Hybrid Inverter 40kw50kw60kw70kw Hybrid Solar Three Phase Inverter for Solar System - additional view 2
off Grid Solar Hybrid Inverter 40kw50kw60kw70kw Hybrid Solar Three Phase Inverter for Solar System - additional view 3
off Grid Solar Hybrid Inverter 40kw50kw60kw70kw Hybrid Solar Three Phase Inverter for Solar System - additional view 4
off Grid Solar Hybrid Inverter 40kw50kw60kw70kw Hybrid Solar Three Phase Inverter for Solar System - additional view 5
off Grid Solar Hybrid Inverter 40kw50kw60kw70kw Hybrid Solar Three Phase Inverter for Solar System - additional view 6
off Grid Solar Hybrid Inverter 40kw50kw60kw70kw Hybrid Solar Three Phase Inverter for Solar System - additional view 7

Off Grid Solar Hybrid Inverter 40–70 kW Three Phase Hybrid Inverter

  • DEMING
Jinan Deming Power Equipment Co, Ltd.
  • Categorie
Categorieën: ,
  • Datum
Facebook Twitter Youtube Skype
$5700

Overzicht projecten

off Grid Solar Hybrid Inverter 40kw50kw60kw70kw Hybrid Solar Three Phase Inverter for Solar System - additional view 2
off Grid Solar Hybrid Inverter 40kw50kw60kw70kw Hybrid Solar Three Phase Inverter for Solar System - additional view 3
off Grid Solar Hybrid Inverter 40kw50kw60kw70kw Hybrid Solar Three Phase Inverter for Solar System - additional view 4
off Grid Solar Hybrid Inverter 40kw50kw60kw70kw Hybrid Solar Three Phase Inverter for Solar System - additional view 5
off Grid Solar Hybrid Inverter 40kw50kw60kw70kw Hybrid Solar Three Phase Inverter for Solar System - additional view 6
off Grid Solar Hybrid Inverter 40kw50kw60kw70kw Hybrid Solar Three Phase Inverter for Solar System - additional view 7
Vond je dit werk leuk? Delen

MOQ: 1 stuk

Elektrisch & Elektronica Omvormer Omvormer zonne-energie

Rated power range40–70 kW (model dependent)
Aanpassing:Beschikbaar
Aard van bronstroom:Actieve omvormer
Certificering:ISO9001, RoHS, CE
BedrijfsmodusDoorlopend
AC bedradingsmodusDraaistroom vier draden
DC-spanningsbereik Vdc200-700Vdc
Aanbevolen nominale accuspanning240V 384V 420V 480V
Spanningsnauwkeurigheid±1%
Nauwkeurigheid bij constante stroom±1%
Gelijkstroomrimpel<1% IPP
Nominale netspanning (AC)220V / 380V / 440V
Netspanningsbereik (AC)±20%
Nominale netfrequentie50Hz / 60Hz
Netfrequentiebereik±10%
Nominaal vermogen (THD)<3% (standaardrooster)
Vermogensfactor0,8leidend-1-0,8-laggend, instelbaar
Nominale uitgangsspanning (AC)220V / 380V / 440V±1%
Vervorming uitgangsspanning<3% (ohmse belasting)
Nominale uitgangsfrequentie50Hz / 60Hz ±1%
Spanningsovergangsbereik<10% (Weerstandsbelasting 0% 100%)
Aan/uit netschakeltijd0 ms
Max. conversie-efficiëntie97%
Geluid<60 dB
BeschermingsgraadIP21
Werktemperatuur-25ºC~+45ºC
KoelmethodeLuchtkoeling
Luchtvochtigheid0~95%
Werkhoogte≤6000m(Reduced usage for more than 2000m)
NoodstopJa (via noodstopknop)
WeergaveAanraakscherm
CommunicatiemodusRS485, WIFI, GPRS, Ethernet (Modbus-protocol)
Afmetingen690*275*770mm
Gewicht42KG
Nominale laadstroom50A
Bereik netspanning±20%

Typical Applications

Suitable for off-grid homes, small industrial sites, RVs, boats and remote installations where stable AC power is required from solar/wind generation sources. With a pure sine wave output, it safely powers sensitive electronics such as computers and medical equipment.

Installation & Selection Tips

Choose an inverter rating at least 20% above your maximum continuous load. Mount the unit in a dry, ventilated location. Use DC and AC breakers of appropriate rating. Contact Jinan Deming Power technical support for sizing assistance and OEM/ODM options.
