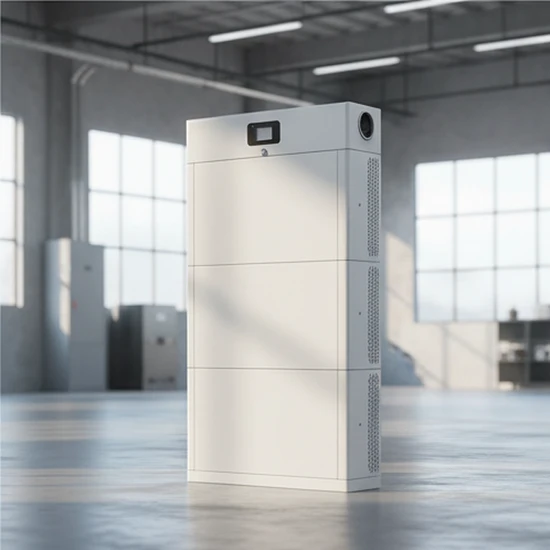

40 kW Inverter Technology for Efficient Wind Energy Storage
- الصفحة الرئيسية
- 40 kW Inverter Technology for Efficient Wind Energy Storage
نظرة عامة على المشاريع
هل أعجبك هذا العمل؟ يرجى المشاركة
موك: 1 قطعة
| الطاقة المقدرة | 40 kW |
|---|---|
| التخصيص: | متوفرة |
| خدمة ما بعد البيع: | نعم |
| الضمان: | 5 Years |
| النوع | NB220-50KSZ |
| DC input | Input rated voltage |
| Input rated current | 139A / 76A / 72.5A |
| Input DC voltage range | 180-300 |
| AC input(AC Bypass) | Allow input voltage range |
| Bypass transfer time | ≤4 ms |
| AC output | Rated capacity |
| Output rated power | 40KW |
| Output rated voltage and frequency | 220 VAC / 380 VAC / 400 VAC,50Hz / 60Hz |
| Output rated current | 139A / 76A / 72.5A |
| Output voltage accuracy | 220 VAC / 380 VAC / 400 VAC ± 2% |
| Output frequency accuracy | 50Hz / 60Hz ±0.05% |
| Waveform distortion (THD).(Linear load) | ≤3% |
| Dynamic response time(Load 0←→100%) | 5% |
| Power factor (PF) | 0.8 |
| Crest factor (CF) | 3:1 |
| Inverter efficiency | 90% |
| WorkingEnvironment | Dielectric strength |
| ضوضاء (1م) | ≤50dB |
| Ambient temperature | -10℃~+50℃ |
| Humidity | 0~90%,No condensation |
| Altitude | ≤5000 m |
| موجة جيبية نقية | نعم |
| Equipped with copper transformer | نعم |
| If solar charger available | نعم |
| AC Charger | Optional |
| Productionfunction | Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermalprotection |
| Size(mm) | 760*1400*1600mm |
| Weight(kg) | 550kg |
About Jinan Deming Power
Jinan Deming Power Equipment Co., Ltd. manufactures wind power, solar power, energy storage and frequency conversion equipment with 15+ years of engineering experience. Serving EPCs, distributors and OEM partners across Asia, Africa, the Americas and Europe.
Get a Quotation
Request datasheets, certifications (CE/ISO9001) and FOB/CIF quotations by emailing info@dminverter.com with your required power, voltage and quantity. Volume pricing and custom configurations supported.
