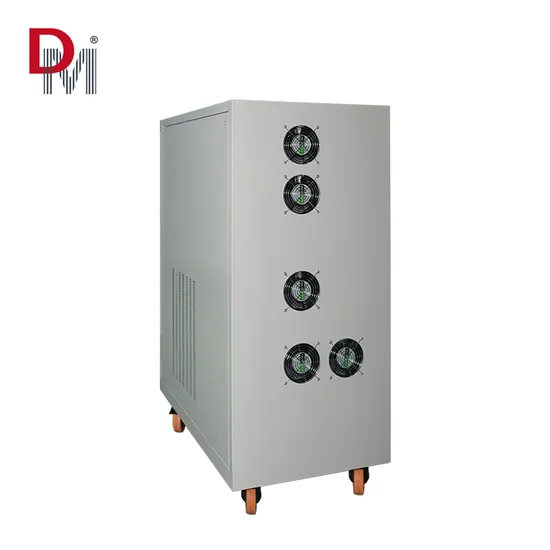

10kw15kw20kw30kw DC48V 96V 120V 220V off Grid Single Phase Inverter
- DEMING
Energy Producers Ltd
- Category
Categories: Off Grid Power Inverter
- Date
2026-04-07
Overview Projects
Did you like this Work? Please Share
Price: US$4,000.00 1-9 Pieces US$3,800.00 10+ Pieces
MOQ: 1 Piece (MOQ)
Metallurgy, Mineral & Energy Solar & Renewable Energy Solar Inverter Single-Phase Solar Inverter
| Customization: | Available |
|---|---|
| After-sales Service: | Yes |
| Warranty: | 2 Years |
| Model | NB96-20KDZ |
| DC input | Input rated voltage |
| Input rated current | 76A |
| Input DC voltage allowing range | 320-480VDC |
| AC Bypass | Allow input voltage range |
| Bypass transfer time | ≤100ms(4ms optional) |
| AC output | Output rated power |
| Output rated voltage and frequency | Three phase 380VAC,50HZ(Three phase four wire) |
| Output rated current | 76A |
| Output voltage accuracy | 380VAC ± 2% |
| Output frequency accuracy | 50Hz ± 0.05% |
| Wave | Pure sine wave (Isolation transformer) |
| THD. | ≤3%(Linear load) |
| Power factor (PF) | 1 |
| Overload capacity | 120%,10 minutes |
| Crest factor (CF) | 3:1 |
| Inverter efficiency | >92% |
| Working Environment | Dielectric strength |
| Noise (1m) | ≤50dB |
| Ambient temperature | -10ºC~+50ºC |
| Humidity | 0~90%, No condensation |
| Altitude | <2000m Higher than 2000m rated power should be reduced |
| Production function | Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection |
| Communication interface | RS485/WIFI/GPRS/Ethernet (optional) |
| Ac charger | (optional) |
| Battery, City grid (generator) priority | (optional) |
| Size | 630*1310*1573mm |
| Weight | 430KG |
| Type | NB384-50KSZ |
| AC bypass | Allow input voltage range |
| Overcurrent capacity | 200%,10 seconds |
