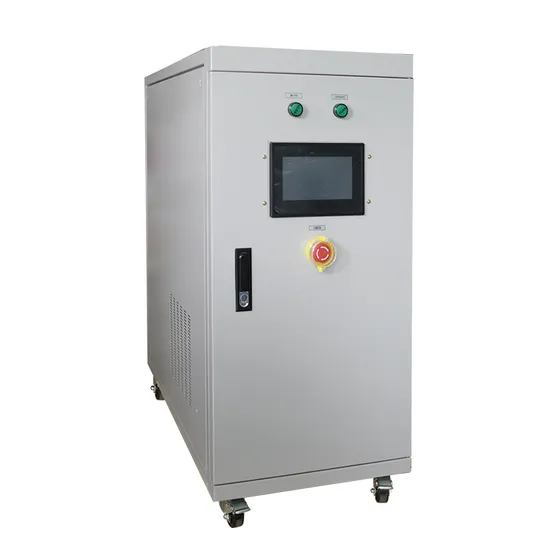

20kw Split Phase Inverter with Two Phase Output AC110V/220V AC120V/240V 30kw 50kw
- DEMING
Energy Producers Ltd
- Categoría
Categorías: Off Grid Power Inverter
- Fecha
2026-04-07
Proyectos generales
¿Te ha gustado esta obra? Compártelo
Price: US$3,200.00 1-9 Pieces US$3,000.00 10+ Pieces
MOQ: 1 Piece (MOQ)
Metallurgy, Mineral & Energy Solar & Renewable Energy Solar Inverter
| Customization: | Available |
|---|---|
| After-sales Service: | Yes |
| Warranty: | 2 Years |
| Modelo | NB220-20KSZ |
| Rated Capacity | Output two phase 20KW |
| Circuit Mode | IGBT/PWM |
| Input Rated Current | 92.6A |
| Input DC voltage Range | DC180-300V |
| Output Mode | Two phase three wires |
| Output Wave | Pure Sine Wave |
| Output Voltage | L1-N: 110Vac, L2-N: 110Vac, L1-L2: 220Vac |
| Output Voltage accuracy | ±1% |
| Output frequency | 50Hz |
| Output frequency accuracy | ±0.01% |
| Output rated power | 20KW |
| Output Rated current | 90.9A |
| Power factor | 0.8 |
| Overload capacity | 120% 109A ,3 minutes,150% 136.4A,10 seconds |
| Overcurrent capacity | 200% 10 seconds |
| Dynamic voltage transient range | 2%(0~100% load change) |
| VTHD(Distortion) | THD<3%( non-linear load) |
| Display Window | High accuracy four-in-one LED display |
| Four digit voltmeter | Accuracy 0.1V |
| Four digit ampere meter | Accuracy 0.1A |
| Four digit frequency meter | Accuracy 0.1Hz |
| Four digit power/power factor meter | Accuracy 0.1W |
| System efficiency | Normal mode: 94% |
| insulation resistance | DC> 500V 20MΩ |
| insulating strength | (Input and output to ground)1800Vdc, leakage current<3.5mA,No-arcing for 1 min |
| Protection Class | IP22 |

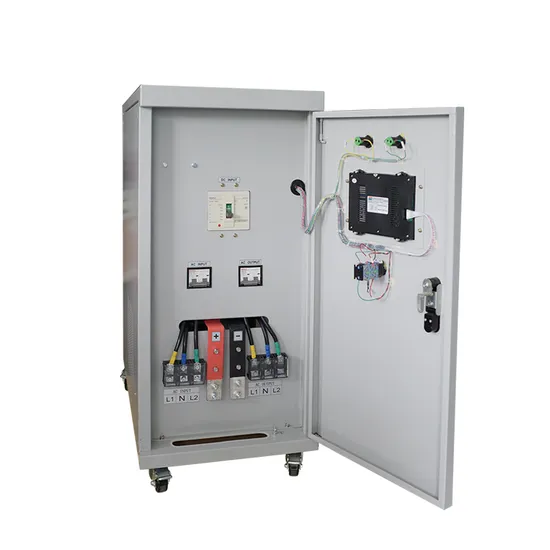

| Wiring method | Input and output wiring terminals,line bank |
| Thermal methods | Transformer forced fan cooling |
| Temperatura de trabajo | -10ºC~+50ºC |
| Relative humidity | 0-90%(No condensation) |
| Noise(dB) | <65dB |
| Protection Function | Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection |
| Equipped with AC Bypass | Yes |
| Communication interface | RS485/WIFI/GPRS/Ethernet (optional) |
| Product Size(L*W*H)mm | 760×760×1520 |
| Product Weight(kg) | 450kg |
| Rated capacity | 25KVA |
| Output Rated ampere | 90.9A |
| Maximum output over current | 136.4A |
| Maximum nominal current of loads | 90.9A |
| Product Size/Weight(L*W*H)mm | 550*480*950mm/135kg |
