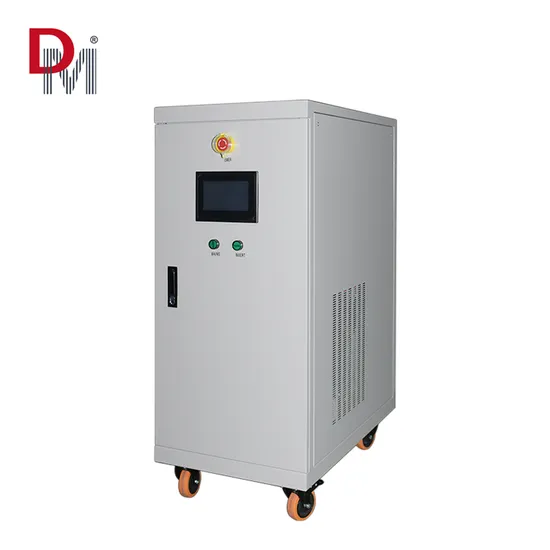

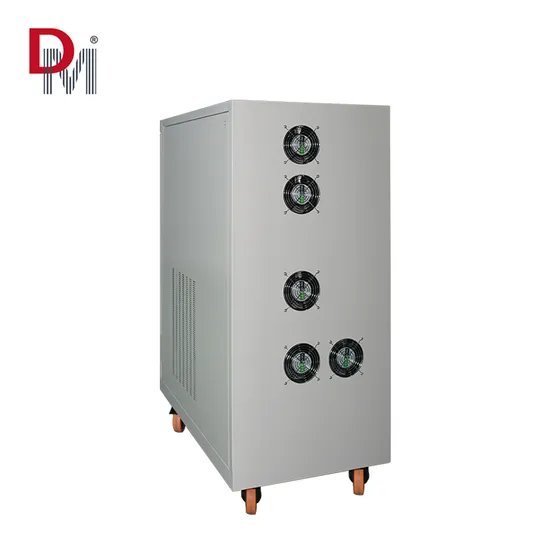

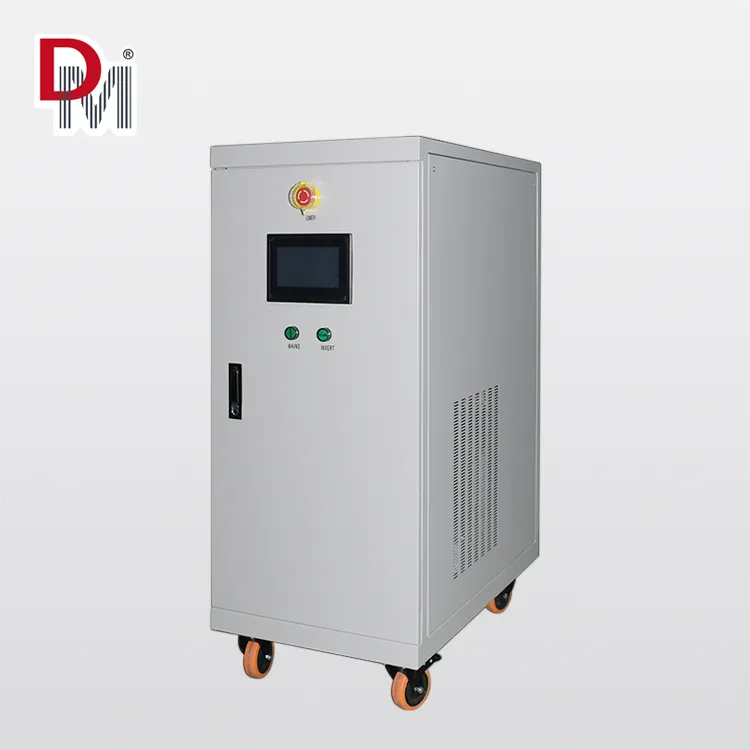

20kw DC96V Single Phase Pure Sine Wave Inverter with CE

شركة منتجو الطاقة المحدودة

الفئات: Power Inverter

2026-04-05

$5700

نظرة عامة على المشاريع

هل أعجبك هذا العمل؟ يرجى المشاركة

Product Description

Power Frequency Pure Sine Wave Inverter Features:

1.Complete isolation-type inverter technology, noiseless output.

2.Adoption of advanced SPWM technology, pure sine wave output.

3.Dynamic current loop control technology to ensure inverter reliable operation.

4.Wide DC input voltage range.

5.Excellent EMC design.

6.Low output harmonic distortion (THD≤3%).

7.LED indicators for input voltage range, load power range, normal output & failure state.

8.Optional energy saving mode.

9.Extensive protections: reverse polarity, short-circuit, overload, under/over input voltage, over-temperature, and inverter’s inner fault identification protections.

10.Wide working temperature range (industrial level).

11.Continuous operation at full power.
Application
1. For desolate area like mountain, island, pasturing area, etc.
2. For transportation system like beacon light, traffic light, street light, etc.
3. For communication system: unattached operation microwave middle   station, optical
cable maintenance station, etc.
4. For photovoltaic power station, wind-solar power station, park charging station, family
   power house, factory power station, etc.
5. For solar building: has good business future.
6. For the new technology application project.

  off grid solar power system

                                                              off grid wind turbine power system

20KVA off grid single phase inverter technical parameters

الطراز		NB96-20KDZ	NB110-20KDZ	NB220-20KDZ
DC input	Input rated voltage	96 VDC	110 VDC	220 VDC
	Input rated current	231.5 A	202 A	101 A
	Input DC voltage allowing range	80-124 VDC	90-140 VDC	180-280 VDC
AC input (AC bypass)	Allow input voltage range	110 VAC / 120 VAC / 220 VAC / 240 VAC ± 15%
	Input rated current	182A / 167A / 91 A / 83A
	Bypass transfer time	≤40 ms (4ms optional)
AC output	Output rated power	20KVA
	Output rated voltage and frequency	110 VAC / 120 VAC / 220 VAC / 240 VAC,50Hz / 60Hz
	Output rated current	182A / 167A / 91 A / 83A
	Output voltage accuracy	110 VAC / 120 VAC / 220 VAC / 240 VAC± 2%
	Output frequency accuracy	50Hz / 60Hz ± 0.05%
	Wave	Pure sine wave (Isolation transformer)
	THD.	≤3%(Linear load)
	Power factor (PF)	0.8
	Overload capacity	120%,10 minutes
	Overcurrent capacity	200%,10 seconds
	Crest factor (CF)	3:1
	Inverter efficiency	>90%
Working Environment	Dielectric strength	1500VAC,1minute
	Noise (1m)	≤50dB
	Ambient temperature	-10ºC~+50ºC
	Humidity	0~90%, No condensation
	Altitude	<2000m Higher than 2000m rated power should be reduced
Production function		Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection
Communication interface		RS485/WIFI/GPRS/Ethernet (optional)
Equipped With Copper Transformer		Yes
Solar Charger		Optional
AC Charger		Optional
Generator Port		Optional
Size		62010401100 mm
Weight		220 Kg

*Above parameter only for reference. Could be custom made to user specifications.

Specifications

[‘Customization:’, ‘Available’]	[‘Nature of Source Flow:’, ‘Passive inverter’]	[‘Output Power:’, ‘>1000W’]
[‘Model’, ‘NB96-20KDZ’, ‘NB110-20KDZ’, ‘NB220-20KDZ’]	[‘DC input’, ‘Input rated voltage’, ’96 VDC’, ‘110 VDC’, ‘220 VDC’]	[‘Input rated current’, ‘231.5 A’, ‘202 A’, ‘101 A’]	[‘Input DC voltage allowing range’, ’80-124 VDC’, ’90-140 VDC’, ‘180-280 VDC’]	[‘AC input(AC bypass)’, ‘Allow input voltage range’, ‘110 VAC / 120 VAC / 220 VAC / 240 VAC ± 15%’]	[‘Input rated current’, ‘182A / 167A / 91 A / 83A’]	[‘Bypass transfer time’, ‘≤40 ms (4ms optional)’]	[‘AC output’, ‘Output rated power’, ’20KVA’]	[‘Output rated voltage and frequency’, ‘110 VAC / 120 VAC / 220 VAC / 240 VAC,50Hz / 60Hz’]	[‘Output rated current’, ‘182A / 167A / 91 A / 83A’]	[‘Output voltage accuracy’, ‘110 VAC / 120 VAC / 220 VAC / 240 VAC± 2%’]	[‘Output frequency accuracy’, ’50Hz / 60Hz ± 0.05%’]	[‘Wave’, ‘Pure sine wave (Isolation transformer)’]	[‘THD.’, ‘≤3%(Linear load)’]	[‘Power factor (PF)’, ‘0.8’]	[‘Overload capacity’, ‘120%,10 minutes’]	[‘Overcurrent capacity’, ‘200%,10 seconds’]	[‘Crest factor (CF)’, ‘3:1’]	[‘Inverter efficiency’, ‘>90%’]	[‘Working Environment’, ‘Dielectric strength’, ‘1500VAC,1minute’]	[‘Noise (1m)’, ‘≤50dB’]	[‘Ambient temperature’, ‘-10ºC~+50ºC’]	[‘Humidity’, ‘0~90%, No condensation’]	[‘Altitude’, ‘<2000mHigherxa0thanxa02000m ratedxa0powerxa0shouldxa0bexa0reduced’]	[‘Production function’, ‘Input reverse protection, input under-voltage protection, output overload protection, output short circuit protection, thermal protection’]	[‘Communication interface’, ‘RS485/WIFI/GPRS/Ethernet (optional)’]	[‘Equipped With Copper Transformer’, ‘Yes’]	[‘Solar Charger’, ‘Optional’]	[‘AC Charger’, ‘Optional’]	[‘Generator Port’, ‘Optional’]	[‘Size’, ‘62010401100 mm’]	[‘Weight’, ‘220 Kg’]
